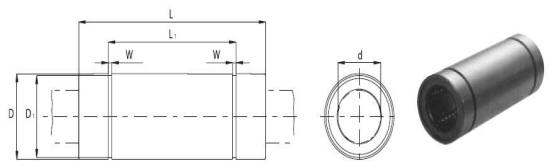

Tuleja toczna - typ KBL
| Nr ³o¿yska |
Liczba rowków z kulkami |
Waga [N] |
d [mm] |
D [mm] |
L [mm] |
Obci±¿enie [N] |
| C |
C0 |
| KBL 08 25 |
4 |
0.31 |
8 |
16 |
45 |
431 |
784 |
| KBL 12 57 |
4 |
0.8 |
12 |
22 |
57 |
657 |
1200 |
| KBL 16 70 |
5 |
1.45 |
16 |
26 |
70 |
1230 |
2350 |
| KBL 20 80 |
5 |
1.8 |
20 |
32 |
80 |
1400 |
2750 |
| KBL 25 112 |
6 |
4.4 |
25 |
40 |
112 |
1560 |
3140 |
| KBL 30 123 |
6 |
5.8 |
30 |
47 |
123 |
2490 |
5490 |
| KBL 40 154 |
6 |
11.7 |
40 |
62 |
154 |
3430 |
8040 |
| KBL 50 192 |
6 |
30.1 |
50 |
75 |
192 |
6080 |
15900 |
| KBL 60 211 |
6 |
35 |
60 |
90 |
209 |
7650 |
20000 |
KBL - d -
³o¿ysko bez uszczelnienia
KBL - d - PP - ³o¿ysko z uszczelnieniem obustronnym
Przyk³ad: KBL 30 PP : ³o¿ysko typ KBL, ¶rednica wa³ka 30 mm, obustronne
uszczelnienie. |
|
|
